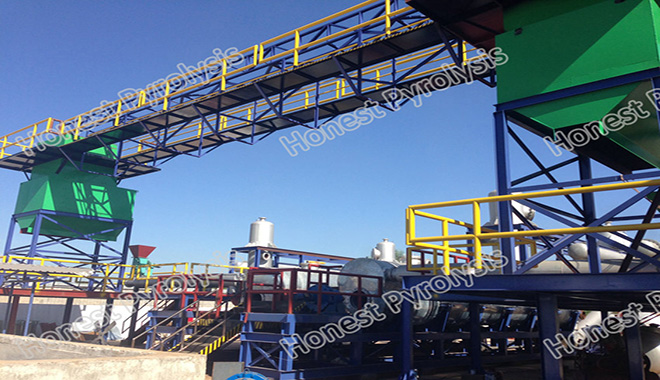

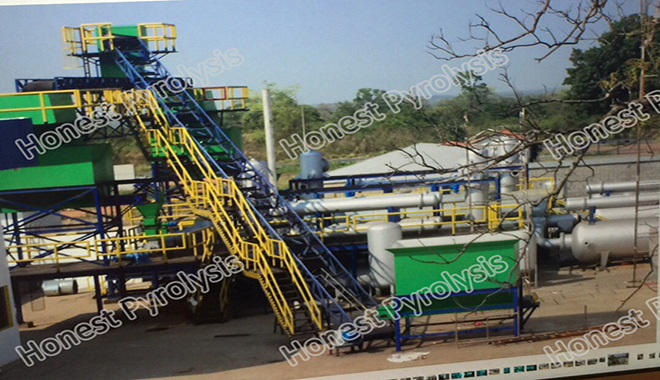

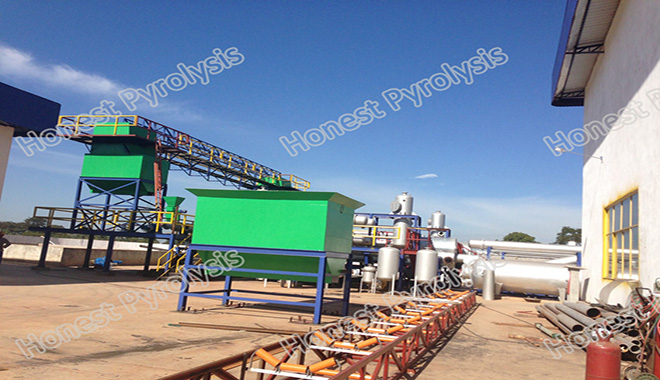

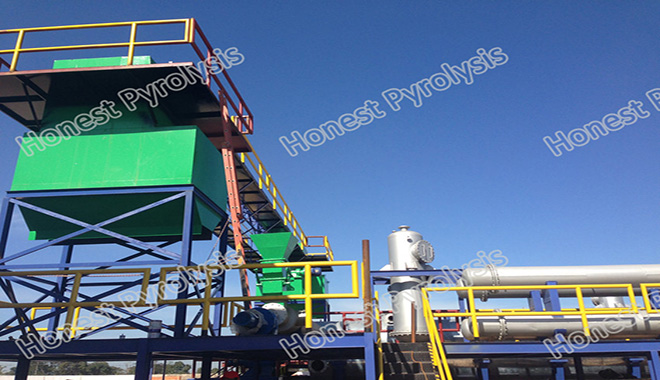

20 T batch type waste tyre(plastic) pyrolysis plant

  • Whole tyre feed, no need to break, which reduces cost.

  • Adopt multilevel cooling circulation to get more fuel oil.

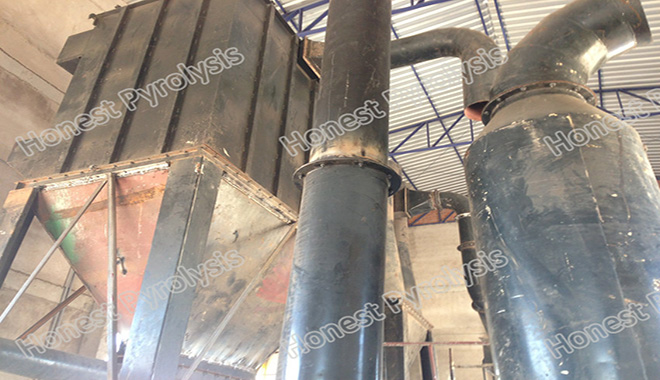

  • Discharge process through pulse dust removal processing, no dust emissions.

  • Easy operation, high efficiency and 2-3 people to operate.

  • Plant adopts fully automatic submerged arc welding process, through x-ray detection, to improve the security of plant.

  • Tyre transported to reactor by conveyor to pyrolyze.

  • Oil and gas from pyrolysis go into gas-liquid separating tower and separate, and enter into condenser to liquify , to get fuel oil, then enter into oil storage tank.

  • Coarse carbon black and steel wire from pyrolysis are output by automatic slag remover, transported to carbon black processing system by cooling hoist. Separate steel wire and carbon black through the magnetic separator,to get  industrial carbon black and steel wire.

  • Steel wire pulled out by winch, compressed into pieces, and do steel scrap process.

  • Flammable gas enter into waste gas tank and processed. Then extracted by vacuum pump, enter into water sealed tank and send to hot air furnace to burn.

Item

20T fully continuous waste tyre pyrolysis plant

Type

XFLJ--20

Capacity

20T/D

Operating temperature

≤650°

Material

Q345R

Fuel consumption in operation

200kg

Heating way

Hot air circulation heating

Tire requirement

Whole tire ≤1200mm

Working pressure

Normal pressure

Methods of flame retardant

Steam Blow

Total power

120 kw

Running power

60 kw/h

Boundary dimension

7300mm(L) × 2400mm(W) × 3100mm(H) × 2

Floor space

25000 mm ×11500 mm

The highest install elevation

5000 mm

Labor

4-6 people

Working life

5-7 year

Remark: This parameter is just for reference. Size change caused by design improvement will not inform customers specially. Please refer to documents enclosed with products.


  • Oil: 40-45%

  • Carbon black: 32-36%

  • Steel wire: 14-16%

  • Syn gas: 5-8%
